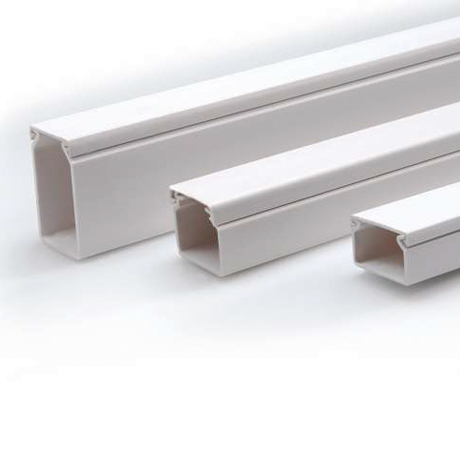

The cable trunking 25mm wide, are available in a variety of heights according to the table below. This type of trunking can be assembled with their full range of accessories into a complete Electrical Instadeal for application on plasterboard, wood, brick walls and concrete.
Their aesthetics allows them to be installed in offices, households and any type of public places. Their durable construction makes them ideal for installations in industrial and highly demanding environments.
They are produced in White RAL 9003 from specially stabilized, self extinguishing U-PVC according to the international standard EN 50085-1, EN 50085-2-1 and are suitable for applications from -25oC up to +60oC. The base of the trunking is predrilled with mounting holes.
They are also available with double sided self-adhesive tape, of high gluing ability, resistant to ageing and Ultra Violet radiation.
The covers of the trunking system are covered with scratch resistant protective foil.
|Use||INTERNAL AND EXTERNAL INSTALLATION|
|Colour||WHITE RAL 9003|
|Placement||WOODEN< LAMINATED FLOORS, CONCRETE|
|Type of facility||ELECTRICAL INSTALLATION|
|Temperature resistance||-25oC up to +60oC|
|Resistance to flame||AVAILABLE|
