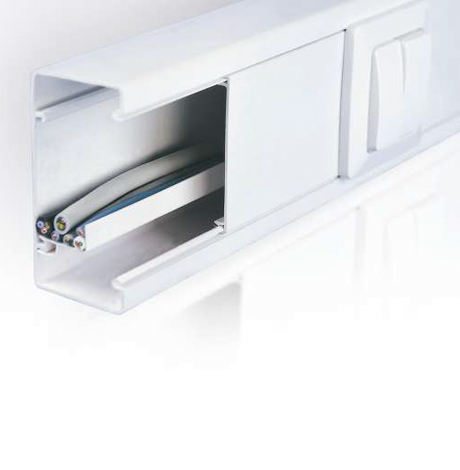

Trunking Systems 100X35 for modular wiring devices.
The bracket fixation system allows the easy and stable setting of modular wiring devices of any number of modules and of any brand.
The cable-data trunkings base 100 mm can be assembled with their full range of accessories into a complete Electrical – Data Installation. The cable divider profile can be assembled internally into the trunking to completely eliminate any electromagnetic interference. Trunking systems 100X50 and 100X35 are ideal for modular wiring devices. The bracket fixation system allows the easy and stable setting of modular wiring devices of any number of modules and of any brand. Their aesthetics allows them to be installed in offices households and any type of public places.
They are produced in White RAL 9003 from specially stabilized, self extinguishing U-PVC according to the International standard EN 50085-1, EN 50085-2-1 and are suitable for applications from -25oC up to +60oC. The cover and top side of the trunking system is covered with scratch resistant protective foil.
|Use||INTERNAL AND EXTERNAL INSTALLATION|
|Colour||WHITE RAL 9003|
|Type of facility||ELECTRICAL INSTALLATION|
|Temperature resistance||-25 - +60°|
|Resistance to flame||AVAILABLE|
