Proflex®

    Project Description

    Description

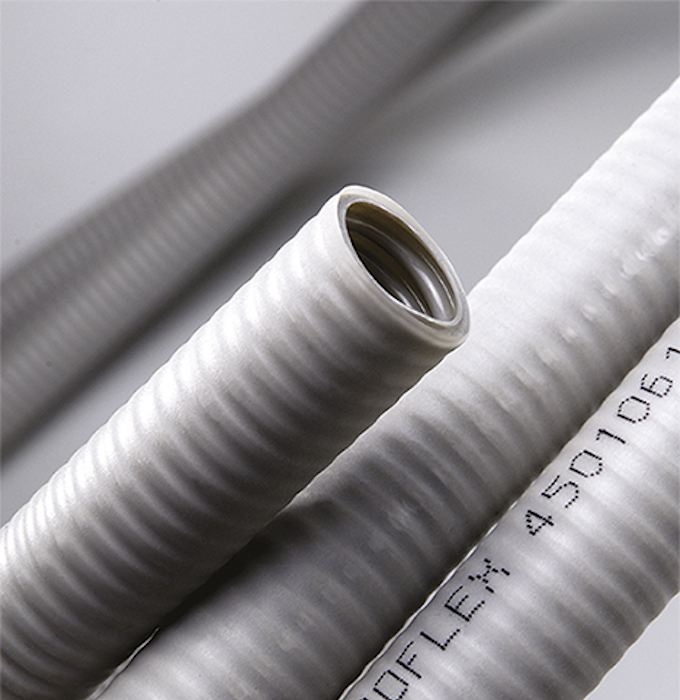

    The external insulating coating of PROFLEX® proves ideal for electrical installations within concrete and especially pressurized concrete. For installations with special requirements it can be used in conjunction with straight reinforced pipes.

    PROFLEX® is produced in Light Grey RAL 9002 the external coating and Dark Grey RAL 7042 the corrugated pipe. The outside coating is S-PVC and the pipe U-PVC both specially stabilized, self-extinguishing, highly resistant to flame and corrosion.

    This corrugated conduit is very flexible while maintaining its original diameter.

    The specially designed internal spirals ensure minimal friction to the electrical wires and thus significantly reducing the installation time.

    The classification code according to EN 61386.22 is 3341; corresponding in resistance to compression force of >750N, impact strength of >2Joule for installations at temperatures -25°C up to +60°C.

    It is also available with internal wire for the ease wire installation PROFLEX WIRE® (Upon request).

    Codes

    The tolerances and measurments are according to DIN 49018

    The tolerances and measurements are according to EN 61386

    Specifications

    DescriptionPLIABLE CORRUGATED CONDUIT WITH EXTERNAL COATING
    Material TypeMEDIUM TYPE, FLEXIBLE
    FamilyPROFLEX
    ColourEXTERNAL COATING RAL 9002 & RAL 7042 THE CORRUGATED PIPE
    Construction MaterialPVC-U & PVC-S
    PlacementPRESSURIZED CONCRETE
    Type of facilityELECTRICAL INSTALLATION
    Temperature resistance-25 - +60°
    Resistance to bendingYES
    Resistance to compression force750Ν
    Resistance to flameYES
    Instant temperature+70°C
