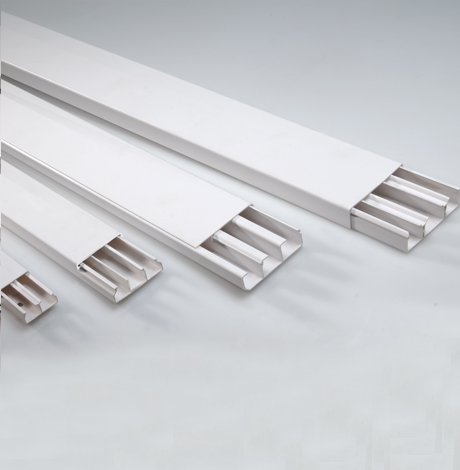

Multicompartments Ducts

    Project Description

    Description

    The base of the ducts is scientifically divided into independent compartments to ensure the absence of any electromagnetic interference between current and data cables.

    The multi-compartment ducts are produced in White RAL 9003 from specially stabilized, self extinguishing U-PVC according to the International Standard EN 50085-1, EN 50085-2-1 and are suitable for applications from -25oC up to +60oC.

    The base of the trunking is equipped with double sided self-adhesive tape, of high gluing ability, resistant to ageing and Ultra Violet radiation.

    The cover of the multi-compartment ducts is covered with scratch resistant protective foil.

    Codes

    Specifications

    DescriptionTRUNKING CABLES
    UseINTERNAL AND EXTERNAL INSTALLATION
    ColourWHITE RAL 9003
    Construction MaterialU-PVC
    PlacementWOODEN, LAMINATED FLOORS, CONCRETE
    Type of facilityELECTRICAL INSTALLATION
    Temperature resistance-25 - +60°
    UV ProtectionAVAILABLE
    Resistance to flameAVAILABLE
    Aging resistanceYES
