Flexodin®

    Project Description

    Description

    FLEXODIN® is used where the mechanical properties of EASYFLEX® are not
    sufficient. It is ideal for electrical installations within and under the plaster, concrete and especially pressurized concrete.

    FLEXODIN®is produced in dark grey RAL 7042, from specially stabilized, self-extinguishing, highly resistant to flame and corrosion U-PVC.

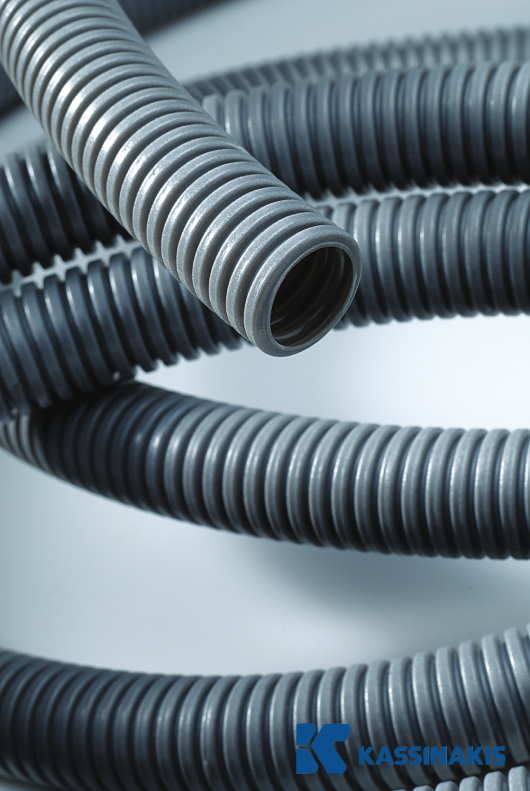

    This corrugated conduit is very flexible while maintaining its original diameter.
    The specially designed internal spirals ensure minimal friction to the electrical wires and thus significantly reducing the installation.
    The classification code according to EN 61386.22 is 3341; corresponding in resistance to compression force of >750N, impact strength of >2Joule for installations at temperatures -25°C up to +60°C.

    Codes

    Specifications

    Description PLIABLE CORRUGATED CONDUIT
    Material TypeMEDIUM TYPE, FLEXIBLE
    FamilyFLEXODIN
    ColourRAL 7042
    Construction MaterialPVC-U
    PlacementPRESSURIZED CONCRETE
    Type of facilityELECTRICAL INSTALLATION
    Temperature resistance-25 C - +60°C
    Resistance to compression force750Ν
    Resistance to flameYES
    Instant temperature+70°C
