Cosmotube heavy

Description

The ideal partner in Electrical installations for photovoltaic panels, and wind generators.

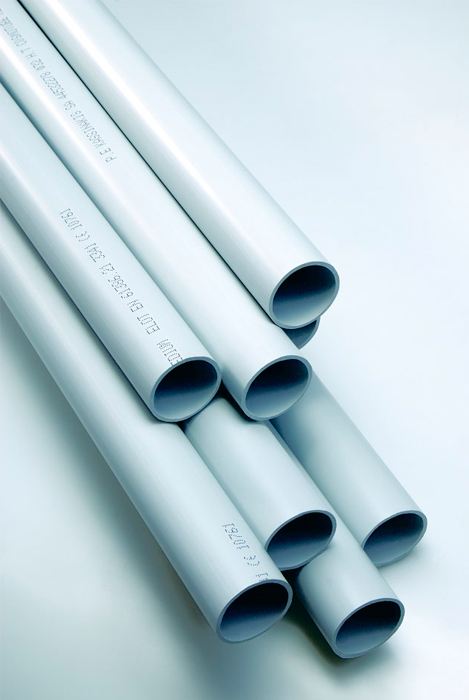

The straight conduit COSMOTUBE® HEAVY is the ideal solution for external electrical installation, underground networks, industrial sites as well as acidic and alkaline environments.
It assembles perfectly with the COSMOTUBE® accessories (couplings, push-fit elbows, T-joints, elbows, 90° bends, snap conduit supports, omega clips) the COSMOFLEX® HEAVY corrugated conduit and with the watertight boxes, switches and sockets into the ideal Electrical Installation Conduit System with sealing ability IP 65.
COSMOTUBE® HEAVY, is produced in light grey RAL 7035 from specially stabilized U-PVC, self-extinguishing, highly resistant to flame, corrosion and the Ultra Violet (UV) radiation.
The classification code according to EN 61386.21 is 4441; corresponding in resistance to compression force of 1250N, impact strength of 6Joule for installations at temperatures -25°C up to +60°C

Codes

Screenshot 1153

Specifications

Description STRAIGHT CONDUIT
Family COSMOTUBE
Colour RAL 7035
Construction Material U-PVC
Type of facility HIGHLY DEMANDING INSTALLATIONS
Temperature resistance -25°C - +60°C
UV Protection YES
Resistance to compression force 1250Ν
Resistance to strength 6 joules
Sealing ability IP IP 65
Resistance to flame YES
Aging resistance YES
