Cosmoflex® Light

    Project Description

    Description

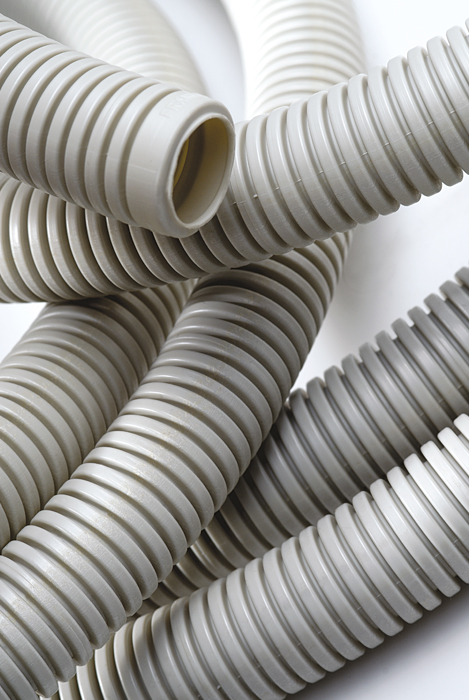

    The pliable corrugated conduit COSMOFLEX® LIGHT is the ideal solution for electrical installations under the plaster, within floors, plasterboards, ceilings and in general for installations with light mechanical requirements.
    It assembles perfectly with the COSMOTUBE® accessories (couplings, push-fit elbows, T-joints, elbows, 90o bends, snap conduit supports, omega clips) the COSMOTUBE® LIGHT straight conduit and with the weatherproof boxes, switches and sockets into the ideal (internal) Electrical Installation Conduit System with sealing ability IP 65.
    COSMOFLEX® LIGHT is produced in light grey RAL 7035 from specially stabilized U-PVC, self-extinguishing, highly resistant to flame and corrosion. This corrugated conduit is very flexible while maintaining its original diameter. The specially designed internal spirals ensure minimal friction to the electrical wires and thus significantly reducing the installation time. The classification code according to EN 61386.22 is 2241; corresponding in resistance to compression force of >320N, impact strength of >1Joule for installations at temperatures -25oC up to +60oC.

    Codes

    Specifications

    DescriptionLIGHT TYPE PLIABLE CORRUGATED CONDUIT
    Material TypeLIGHT TYPE
    UseINTERNAL INSTALLATION
    FamilyCOSMOFLEX
    ColourGREY RAL 7035
    Construction MaterialU-PVC
    PlacementSURFACE MOUNTING
    Temperature resistance-25oC up to +60oC
    Resistance to bendingPLIABLE
    Resistance to compression force320N
    Resistance to strength>1J
    Sealing ability IP>IP 65
    Resistance to flameAVAILABLE
