Cosmoflex® Heavy

    Project Description

    Description

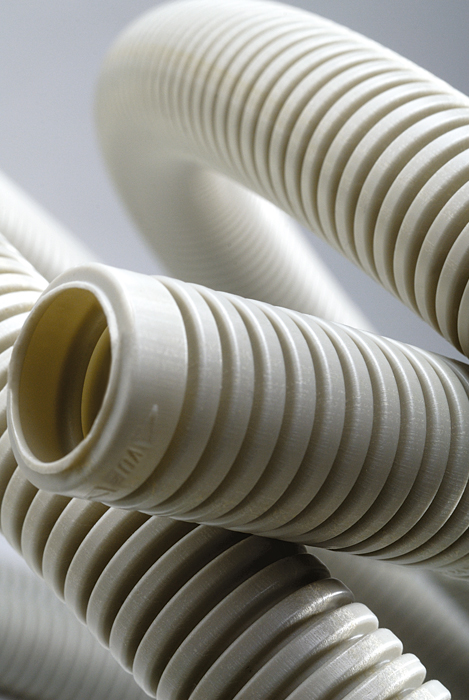

    The ideal partner in Electrical installations for solar panels, and wind generators. The pliable corrugated conduit COSMOFLEX® HEAVY is the ideal solution for external electrical installation, underground networks, industrial sites as well as acidic and alkaline environments. It assembles perfectly with the COSMOTUBE® accessories (couplings, push-fit elbows, T-joints, elbows, 90° bends, snap conduit supports, omega clips) the COSMOTUBE® HEAVY straight conduit and with the watertight boxes, switches and sockets into the ideal Electrical Installation Conduit System with sealing ability IP 65.

    COSMOFLEX® HEAVY, is produced in light grey RAL 7035 from specially stabilized U-PVC, self-extinguishing, highly resistant to flame, corrosion and the Ultra Violet (UV) radiation. This corrugated conduit is very flexible while maintaining its original diameter. The specially designed internal spirals ensure minimal friction to the electrical wires and thus significantly reducing the installation time. The classification code according to EN 61386.22 is 4441; corresponding in resista-nce to compression force of 1250N, impact strength of 6Joule for installations at temperatures -25°C up to +60°C.

    Codes

    The tolerances and measurements are according to EN 61386

    *Upon Request

    Specifications

    DescriptionSTRAIGHT CONDUIT
    Material TypeHEAVY TYPE
    UseEXTERNAL FACILITY
    FamilyCOSMOFLEX
    ColourRAL 7035
    Construction MaterialU-PVC
    Type of facilityHIGHLY DEMANDING INSTALLATIONS
    Temperature resistance-25°C - +60°C
    UV ProtectionYES
    Resistance to bendingYES
    Resistance to compression force1250Ν
    Resistance to strength6 joules
    Sealing ability IPIP 65
    Resistance to flameYES
    Aging resistanceYES
